Welding Assemblies

Stingers / Leads / Clamps

Direct’s pre-assembled welding stingers/whips, leads, and ground clamps combine our industry-best Flex-A-Prene® and Ultra-Flex® products along with genuine Lenco- and Tweco-brand components for excellent conductivity and maximum power transfer. Built to outwork and outlast, our welding assemblies feature 30 or 36 AWG SAE J1127-rated copper stranding, meet NEC Article 630 (Electric Welders) standards, and are RoHS compliant.

SAE J1127 compliant
NEC Article 630 (Electric Welders)
Ready-to-use; no on-site cutting, crimping, or terminating
#1 welding cable used by pipeliners
Superior flexibility and smoother pulling

Specifications

Assembly Types

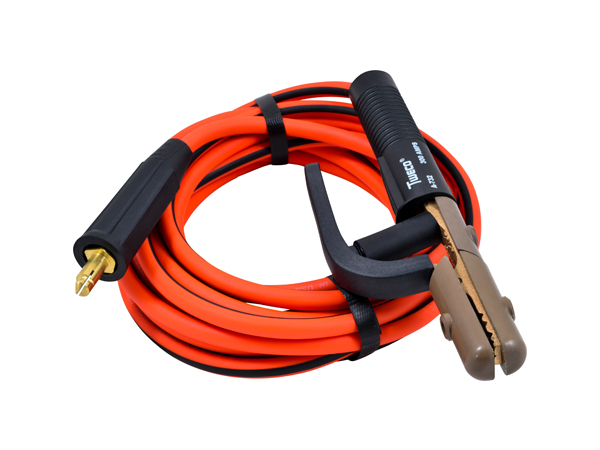

Stingers / Whips

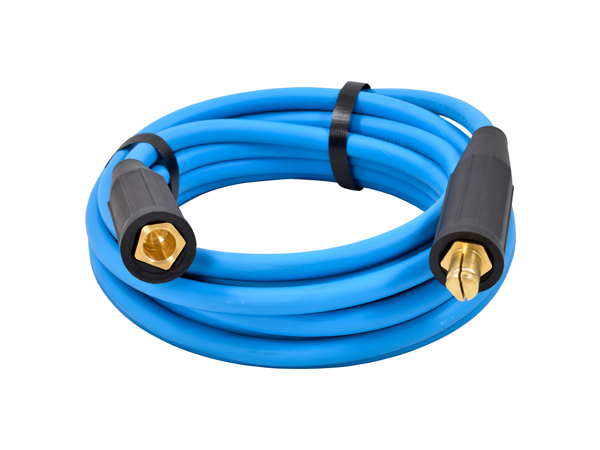

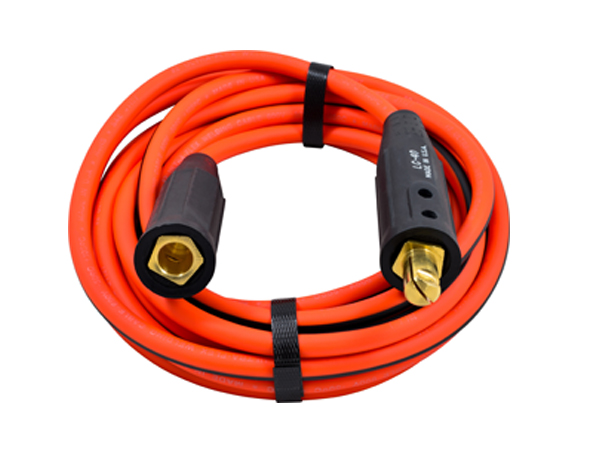

Leads / Extensions

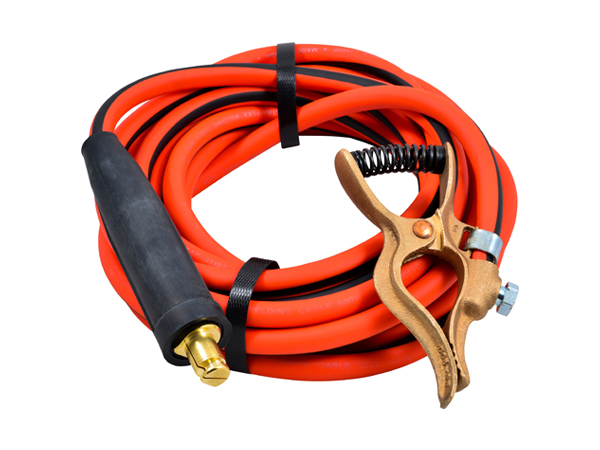

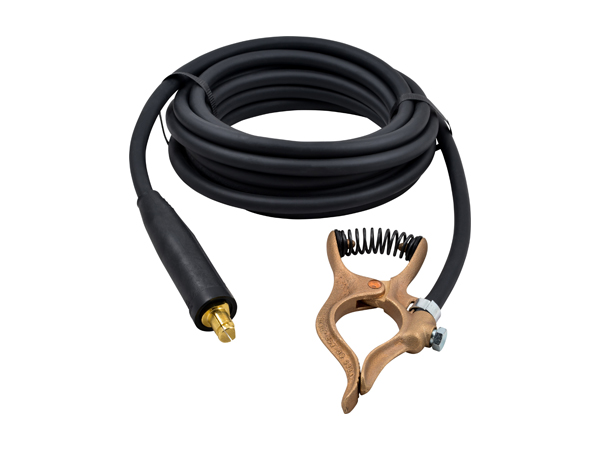

Grounding Clamps

Cable Types

Flex-A-Prene® (30 AWG SAE)
Ultra-Flex® (36 AWG SAE)

Connector Types

Genuine Lenco and Tweco Components
Electrode Holders
Ground Clamps
Terminal Connectors
Cable Connectors, Lug, and Splicers
Male/Female Plugs and Receptacles

Flex-A-Prene® Cable

SAE J1127 Compliant
NEC Article 630 (Electric Welders)
Suitable for battery use per UL 558 and 583
REACH, RoHS, CMRT, and Prop 65 Compliant

Ultra-Flex® Cable

SAE J1127 Compliant
NEC Article 630 (Electric Welders)
REACH, RoHS, CMRT, and Prop 65 Compliant

Assembly Lengths

Available at 25', 50', and 100'
Custom assembly lengths available upon request

Packaging

Coiled, shrink-wrapped, and boxed

High Flexibility

Finer base stranding and greater strand count allow products to bend more easily and increase lifespan in flexing applications

Enhanced Safety

Superior mechanical and resistance characteristics provide safer handling and easier cable management in the field

Lighter Weight

Proprietary components and efficient cable construction deliver significant weight savings without compromising performance

Extra Durable

High-quality jacket compounds provide long-term durability and protect against hard usage and harsh environments

Jacket Colors (Flex-A-Prene®)

Black (Standard) Blue Green Red Yellow
Custom striping available upon request
Custom colors available upon request

Jacket Colors (Ultra-Flex®)

Orange (Jacket) Black (Stripe)

Marking Options

Quick Print®
Surface Print
Indent Print
Logo / Icons / Branding
Sequential Marking
