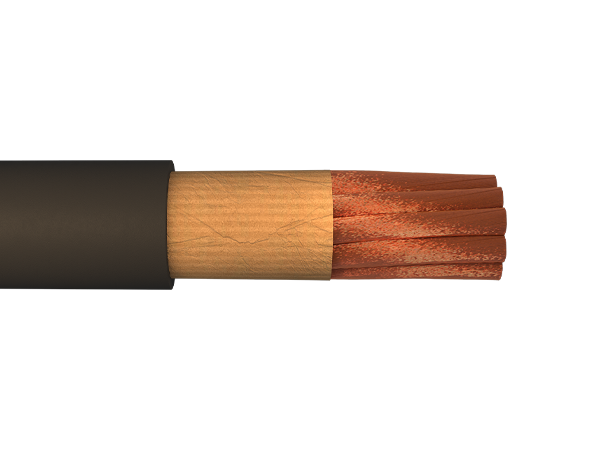

All-Flex + TRANS BCK

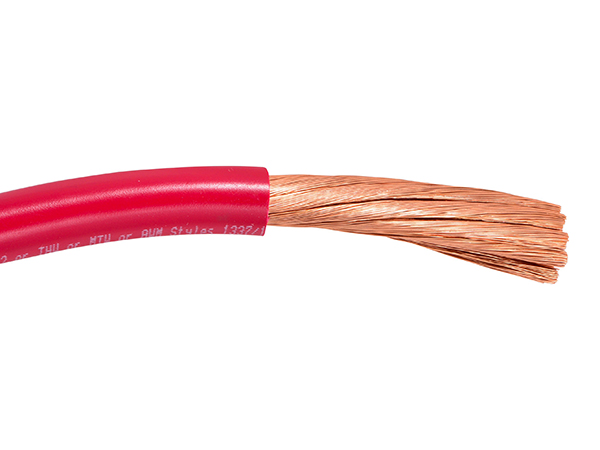

All-Flex - End Detail - STRAIGHT

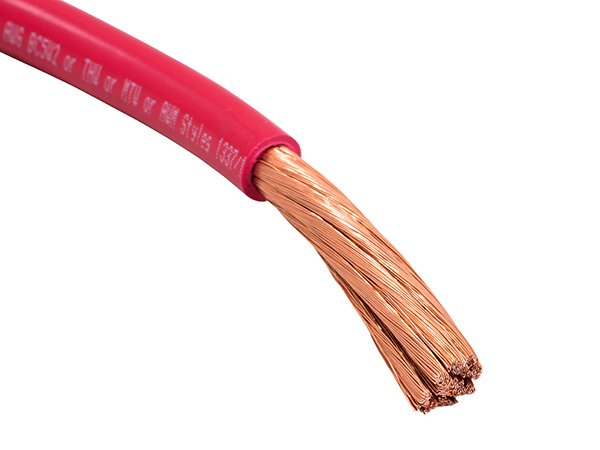

All-Flex - End Detail - ANGLE

Veri-Flex® SCE

PVC TYPE SCE / STAGE CABLE

Direct’s Veri-Flex® Type SCE / stage cable is an industrial grade, portable power cable used within the entertainment industry, including live events, movie and television, and theatre lighting. Durable and versatile, the cable is also commonly deployed for rental, mining, and temporary power applications. Veri-Flex is UL and cULus listed, RoHS compliant, and manufactured in the USA.

  • 30 AWG ASTM Class K Bare Copper
  • Jacketed with proprietary PVC Alloy (TPE) compound
  • #8 – 250 MCM
  • 600 V
  • Operating Temperature: -60°C to 105°C (Dry)
  • UL / ASTM / SAE
Request A Quote View Spec Sheet

Specifications

Conductors
  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper
Voltage Rating
  • 600 V
Insulation & Jacket
  • Jacketed with proprietary PVC Alloy (TPE) compound
  • Resistant to abrasion, crushing force, extreme temperatures, oil, sunlight, and water
  • UL tested 60°C (140°F) oil resistant temperature rating
Temperature Range
  • -60°C (-76°F) to 105°C (221°F) Dry
  • 75°C (167°F) Wet
Industry Approvals
  • UL Listed Type SCE
  • UL 1680 (Stage and Lighting Cable)
  • UL 44, 62 and 1581
  • NFPA 70/NEC Arts. 400, 520, 525, and 530
  • CSA C22.2 No. 96 and UL-2556
  • ASTM B3, B49, B172, and B263
  • RoHS
Available Lengths
  • Reels at 250’ / 500’ / 1,000’ / 2,500’
  • Custom lengths and assemblies available upon request
AWG SIZESTRAND GAUGESTRANDINGINSULATION THICKNESSOUTSIDE DIAMETERAMPACITY(*)LBS PER 1K'
ININ
#830182.090.33880 A93
#630273.090.383105 A129
#430429.090.418140 A183
#230676.090.487190 A269
#130845.090.518220 A328
1/0301,066.090.558260 A398
2/0301,339.090.607300 A491
3/0301,677.090.660350 A602
4/0302,109.090.723405 A745
250 MCM302,527.095.791455 A897
(*) Allowable ampacity per NFPA 70 / NEC Article 310. Values are based on ambient temperature of 30°C.
AWG SIZESTRAND GAUGESTRANDINGINSULATION THICKNESSOUTSIDE DIAMETERAMPACITY(*)LBS PER 1K'
MMMM
#8301822.298.5980 A93
#6302732.299.73105 A129
#4304292.2910.6140 A183
#2306762.2912.37190 A269
#1308452.2913.16220 A328
1/0301,0662.2914.17260 A398
2/0301,3392.2915.42300 A491
3/0301,6772.2916.76350 A602
4/0302,1092.2918.37405 A745
250 MCM302,5272.4120.09455 A897
(*) Allowable ampacity per NFPA 70 / NEC Article 310. Values are based on ambient temperature of 30°C.
Jacket Colors
  • Black (standard) Blue Green Red Yellow
Simple Print Legend
  • VERI-FLEX {E #} SCE{AWG SIZE} 105C - 60C WATER RES 75C 600V SUN RES OIL RES 60C MAX AMPS NEC TABLE 400.5(B) FOR 90C - PVC 600V 90C {P#} MSHA
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo/Icon
  • Sequential Marking
