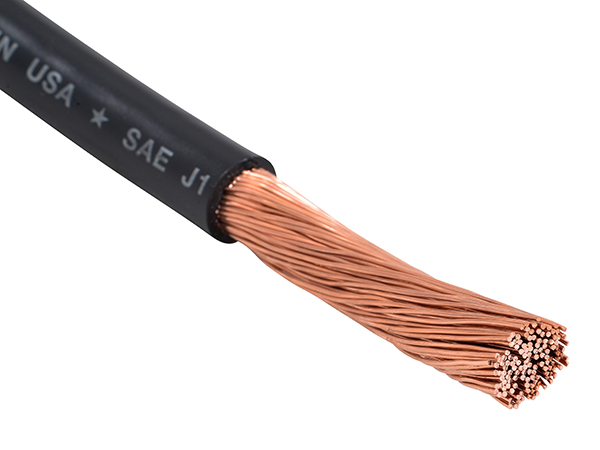

SGT - End Detail - ANGLE

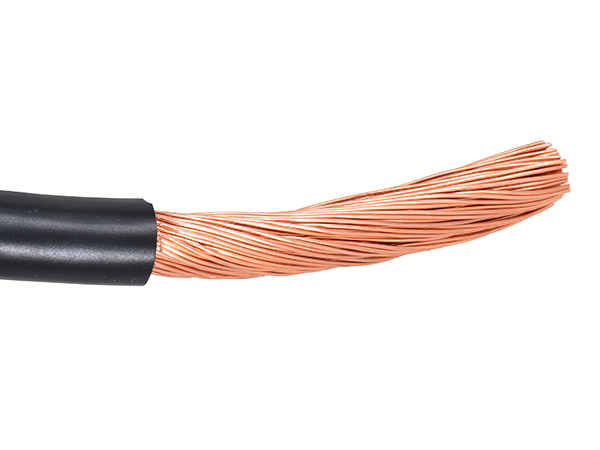

SGT - End Detail - STRAIGHT

SGT

Multi-purpose Battery Cable

Direct’s Type SGT is a multi-purpose battery cable designed for use in automotive and vehicular applications (e.g. car, bus, truck, tractor, heavy equipment, etc.) as well as a variety of industrial environments. Type SGT is UL listed, meets SAE J1127 requirements, and manufactured in the USA.

  • Rope-lay, bunch-stranded standard combination 133X/30 AWG SAE copper conductor
  • Also available in 30 AWG and 24 AWG stranding gauge options
  • Jacketed with PVC compound
Request A Quote View Spec Sheet

Specifications

Conductors
  • Rope-lay, bunch-stranded SAE copper conductor
  • Available in combination 133X/30 AWG, 30 AWG, and 24 AWG stranding gauge options
Voltage Rating
  • 60 V DC; 25 V AC
Insulation & Jacket
  • Jacketed with PVC compound
Resistance Properties
  • Resistant to battery acid, crushing force, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Temperature Range
  • -50°C (-58°F) to 105°C (221°F)
Industry Approvals
  • UL Listed
  • Meets battery cable requirements per UL 558 and 583
  • UL 4127 (60 V DC; 25 V AC)
  • SAE J1127 Compliant
  • CMRT
Available Lengths
  • Coils/Assemblies at 25’, 50’, 100’, and 250’
  • Reels at 500’, 1,000’, and 2,500’
  • Custom lengths available upon request
Cable SizeStranding GaugeConductor
Stranding		Insulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
AWG133X/30 AWG offeringNo. strandsin.in.lbs.
#6.0140 (27)133.060.312111
#4.0170 (25)133.065.363158
#2.0218 (23)133.065.428243
#1.0100 (30)767.065.456288
1/0.0100 (30)975.065.501359
2/0.0100 (30)1196.065.539432
3/0.0100 (30)1547.078.625564
4/0.0100 (30)1950.078.690699
AWG30 AWG offeringNo. strandsin.in.lbs.
#6.0100 (30)260.060.307110
#4.0100 (30)364.065.346149
#2.0100 (30)624.065.428240
#1.0100 (30)767.065.456288
1/0.0100 (30)975.065.501359
2/0.0100 (30)1196.065.539432
3/0.0100 (30)1547.078.625564
4/0.0100 (30)1950.078.690699
AWG24 AWG offeringNo. strandsin.in.lbs.
#6.0195 (24)70.060.333115
#4.0195 (24)98.065.397159
#2.0195 (24)168.065.449248
#1.0195 (24)210.065.465299
1/0.0195 (24)266.065.544375
2/0.0195 (24)342.065.597472
3/0.0195 (24)418.078.674585
4/0.0195 (24)532.078.748731
Cable SizeStranding GaugeConductor
Stranding		Insulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
mmmmkg
#6.0141331.527.8748
#4.0171331.659.6573
#2.0221331.6510.92109
#1.0241331.6511.94133
1/0.0271331.6513.59170
2/0.0311331.6514.22202
3/0.0213611.9815.77255
4/0.0243611.9817.20321
Jacket Colors
  • Black (Standard) Blue Green Red Yellow Orange
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icons / Branding
  • Sequential Marking
