Entertainment Assembly - Type SC

Entertainment Assembly - Type SC 04

Entertainment Assemblies

Stage Cable Assemblies

Direct’s Veri-Flex® Type SC / stage cable assemblies are industrial grade, portable power cable systems used within the entertainment industry. The assemblies are engineered and manufactured to the highest industry standards, including NEC Articles 520, 525, and 530 for indoor and outdoor use—making them the ideal solution for concert and theatre stages, theme parks, TV and film, trade shows and corporate events, and permanent installations.

30 AWG ASTM Class K copper
UL Listed Type SC
Rated for indoor and outdoor applications
Color-coded 16 series cam connectors

Specifications

Assembly Types

Cam Connector Feeder Cables

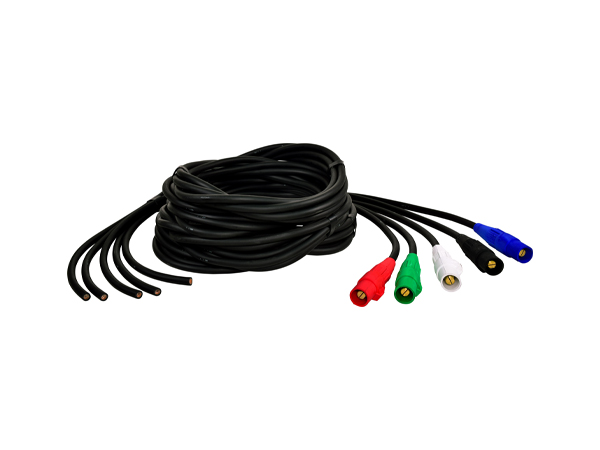

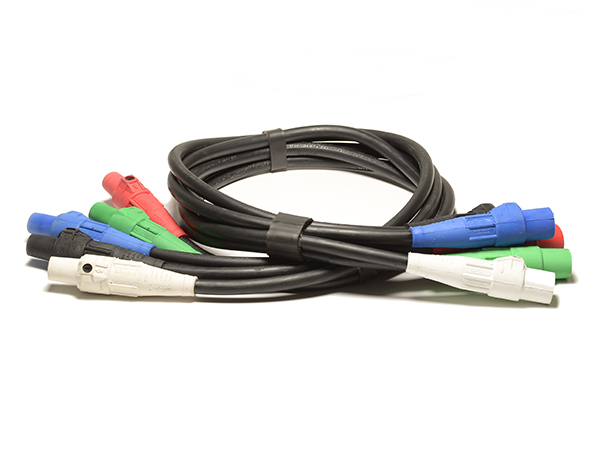

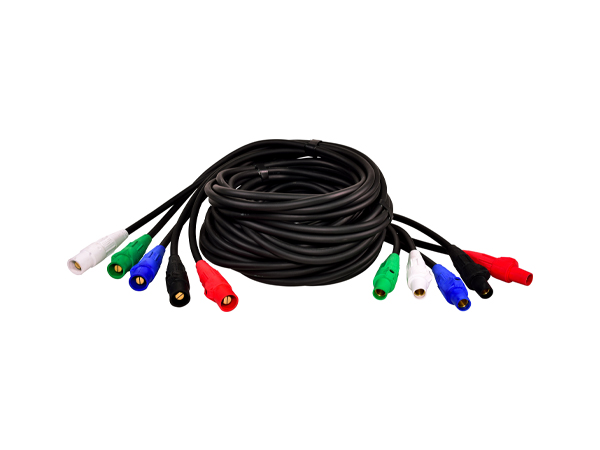

2-, 3-, and 5- Wire Banded

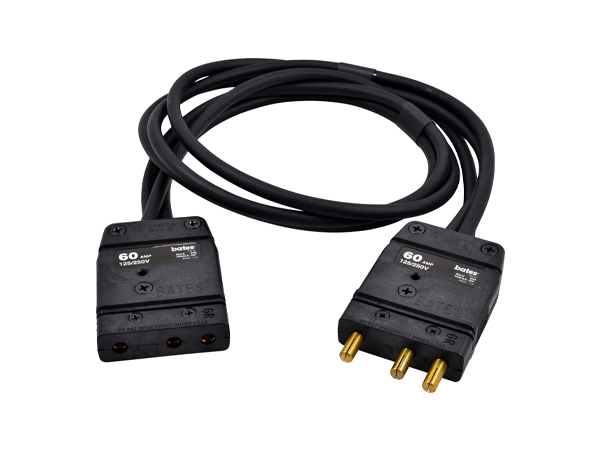

Stage Pin Extensions
Pigtails / Tie-ins

Connector Types

16 Series Cam Connectors
Twist-Lock
Pin and Sleeve
Straight Blade
Locking Extension

Industry Approvals

UL Listed and CSA Compliant Type SC
NFPA 70 / NEC Articles 400, 520, 525, and 530
UL VW-1 and MSHA FT5 Type SC
ASTM B3, B172, and B263
MSHA Approved
RoHS and Prop 65 Compliant

Assembly Lengths

Available at 25', 50', and 100'
Custom assembly lengths available upon request

Packaging

Coiled, shrink-wrapped, and boxed

Multi Location

For use in accordance with NEC Articles 520, 525, and 530 for indoor and outdoor applications and environments

High Flexibility

Finer base stranding and greater strand count allow products to bend more easily and increase lifespan in flexing applications

Extra Durable

High-quality jacket compounds provide long-term durability and protect against hard usage and harsh environments

Jacket Colors (Veri-Flex®)

Black (Standard) Blue Green Red Yellow
Custom striping available upon request
Custom colors available upon request

Cam-Lok™ Colors

Black Blue Green Red Yellow White Orange Brown

Marking Options

Quick Print®
Surface Print
Indent Print
Logo / Icons / Branding
Sequential Marking

Placeholder

Veri-Flex® SC / Stage Cable

Single-Pass Stage Cable

• #30 AWG ASTM Class K
• #8 — 4/0
• Single Layer CPE Construction
• -50°C — 105°C
• 600 V Rated
• UL / ASTM / NFPA / NEC / FT

Placeholder

Dura-Flex® Type W Single Conductor

Portable Power Cable

• 30 AWG ASTM Class K
• #6 — 4/0
• EPDM (Inner) / CPE (Outer)
• -40°C — 90°C
• 600 V; 2,000 V Rated
• UL / cULus / ASTM / MSHA / FT / RHH/RHW/RHW-2 / Prop 65 Compliant

Placeholder

Power Assemblies

Temp & Perm Power Assemblies

Industrial grade cable systems used for permanent or temporary power supply, including portable generators, rental equipment, HVAC systems, oil and mining, and motor/battery leads. Built with superior cable products and genuine brand connector components.

Placeholder

Extension Cords

Heavy Duty Extensions

Indoor/outdoor extension cords designed to withstand heavy use and constant flexing within a range of temporary power applications, including portable equipment, generators, and power tools. Molded and lighted ends. Meets UL and OSHA requirements.
