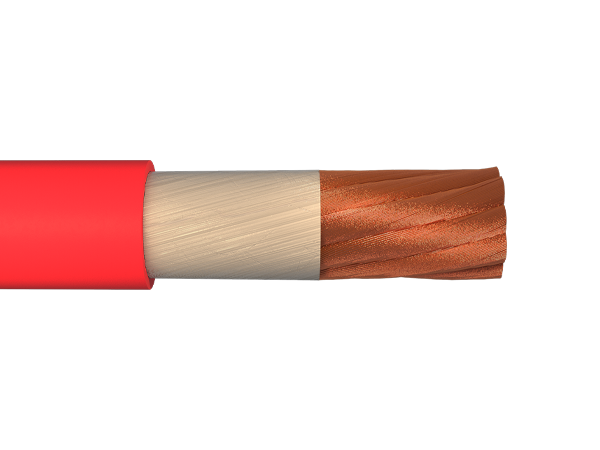

3311 3279 + TRANS BCK

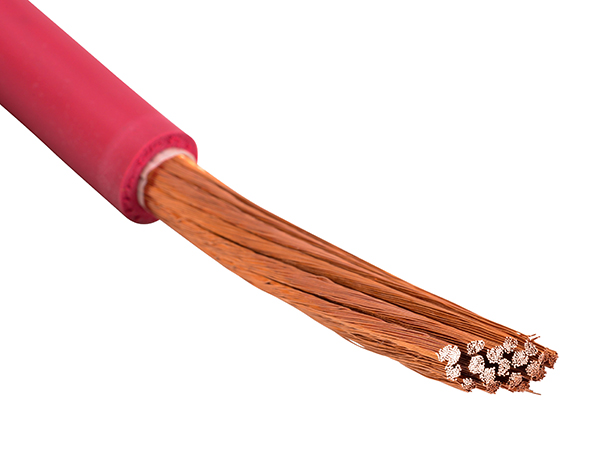

3311 3279 - End Detail - ANGLE

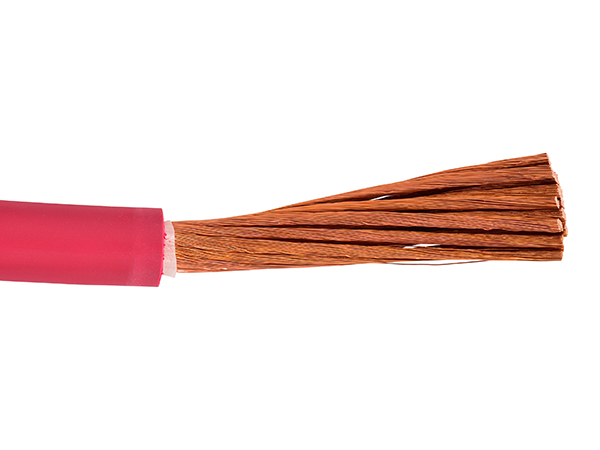

3311 3279 - End Detail - STRAIGHT

3311 / 3279 / CL905

Interconnection Battery Cable

Direct’s 3311 / 3279 / CL905 is a highly versatile battery cable suitable for interconnection between terminals and starters or grounds. It is also commonly used within welding applications, motor leads, internal wiring of appliances, and UPS systems. 3311 / 3279 / CL905 is UL and cRUus listed, RoHS compliant, and manufactured in the USA.

  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare or tinned ASTM Class K copper
  • Wrapped paper separator
  • Jacketed with EPDM compound
Request A Quote View Spec Sheet

Specifications

Conductors
  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare or tinned ASTM Class K copper
Separator
  • Wrapped paper separator
Voltage Rating
  • 600 V
Insulation & Jacket
  • Jacketed with EPDM compound
Resistance Properties
  • Resistant to abrasion, battery acid, crushing force, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Temperature Range
  • 3311; -50°C (-58°F) to 90°C (194°F)
  • 3279; -50°C (-58°F) to 105°C (221°F)
  • CL905; -30°C (-22°F) to 90°C (194°F)
Industry Approvals
  • UL 758 Appliance Wiring Material
  • Meets battery cable requirements per UL 558 and 583
  • UL 1581 and 2556
  • CSA C22.2 No. 127 and No. 2556
  • ASTM B3, B49, B33, and B172
  • cRUus Listed
  • FT-1 and FT-2
  • REACH, RoHS, CMRT, and Prop 65 Compliant
Available Lengths
  • Coils/Assemblies at 25’, 50’, 100’, and 250’
  • Reels at 500’, 1,000’, and 2,500’
  • Custom lengths available upon request
Cable SizeStranding GaugeConductor
Stranding		Insulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
AWG or MCMininlbs
#830182.080.32692
#630273.080.370128
#430429.080.420187
#230676.080.475267
#130845.095.544344
1/0301,066.095.581416
2/0301,339.095.630511
3/0301,677.095.688628
4/0302,109.095.746773
250 MCM302,527.095.810926
Cable SizeStranding GaugeConductor
Stranding		Insulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
AWG or MCMmmmmkg
#8301822.038.2842
#6302732.039.4058
#4304292.0310.6785
#2306762.0312.07121
#1308452.4113.82156
1/0301,0662.4114.76189
2/0301,3392.4116.00232
3/0301,6772.4117.48285
4/0302,1092.4118.95351
250 MCM302,5272.4120.57420
Jacket Colors
  • Black (standard) Blue Green Red Yellow
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icons / Branding
  • Sequential Marking
