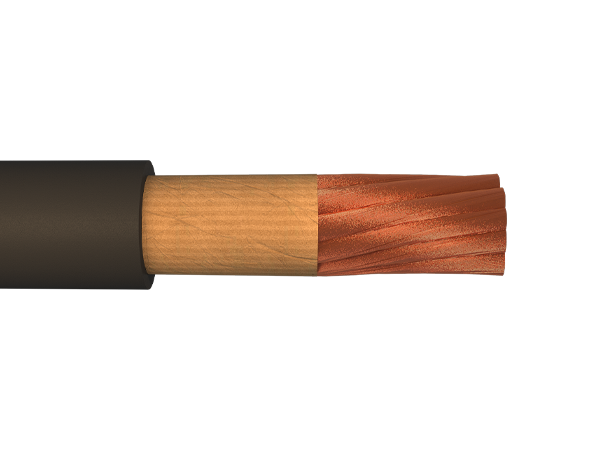

3284 + TRANS BACK

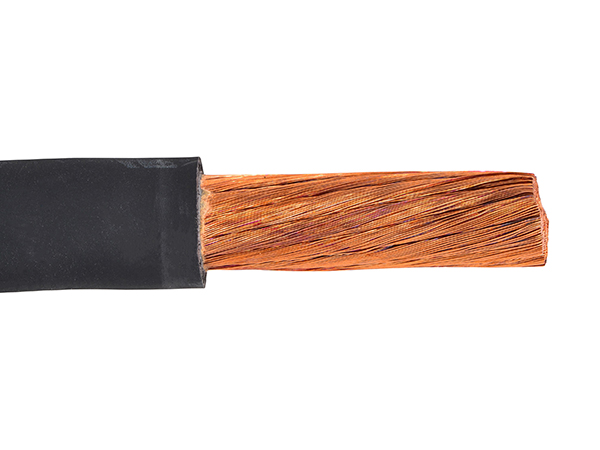

3284 - End Detail - STRAIGHT

3284 / CL1254

Interconnection Battery Cable

Direct’s 3284 / CL1254 is a highly versatile cable suitable for use within battery, welding, motor leads, appliance internal wiring, industrial battery chargers, uninterruptible power supply (UPS) systems, and other wire harness applications. 3284 / CL1254 is UL and cRUus listed, CSA approved, and manufactured in the USA.

  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare or tinned ASTM Class K copper
  • Wrapped paper separator
  • Jacketed with LSHF EPR compound
  • CMRT and Prop 65 Compliant
Request A Quote View Spec Sheet

Specifications

Conductors
  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare or tinned ASTM Class K copper
Separator
  • Wrapped paper separator
Voltage Rating
  • 600 V
Insulation & Jacket
  • Jacketed with low-smoke, halogen-free EPR compound
Resistance Properties
  • Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Temperature Range
  • 3284; -50°C (-58°F) to 125°C (257°F) Dry
  • CL1254; -30°C (-22°F) to 125°C (257°F) Dry
Industry Approvals
  • UL 758, 1581, and 2556
  • CSA C22.2 No. 127 and No. 2556
  • ASTM B3, B33, B49, B172, and B263
  • cRUus Listed
  • FT-1 and FT-2
  • CMRT and Prop 65 Compliant
Available Lengths
  • Coils/Assemblies at 25’, 50’, and 100’
  • Reels at 250', 500’, 1,000’, and 2,500’
  • Custom lengths available upon request
Cable SizeStranding GaugeConductor
Stranding		Insulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
AWGininlbs
#630273.080.370129
#430429.080.420189
#230676.080.475270
#130845.095.544346
1/0301,066.095.581418
2/0301,339.095.630514
3/0301,677.095.688631
4/0302,109.095.746776
Cable SizeStranding GaugeConductor StrandingInsulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
AWGmmmmkg
#6302732.03 9.4059
#4304292.03 10.6786
#2306762.03 12.07122
#1308452.4113.82157
1/0301,0662.4114.76190
2/0301,3392.4116.00233
3/0301,6772.4117.48286
4/0302,1092.4118.95352
Jacket Colors
  • Black (Standard)
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icons / Branding
  • Sequential Marking
